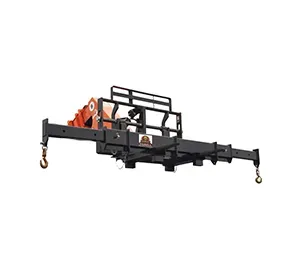

Adjustable Spreader Bar
It does not have to be a balancing act...
The Adjustable Spreader Bar is popular with metal building erectors. They use it to handle long metal beams as well as sheet metal roofing and siding. Long material has a tendency to bend and can be difficult to balance. The Adjustable Spreader Bar can handled this material easily and safely. Concrete contractors can use the Spreader Bar to effectively handle rebar cages. All around you will find many uses for this handy attachment.
Features
Three models to choose from 8' to 12', 10' to 15' and 13' to 20'
Can be ordered with the optional 5 ton swivel hook for the center eye position
Constructed of heavy tubular steel components
Fork slot pockets accept 7" wide x 2 3/4" thick forks
Safety chains secures the Telehandler Spreader Bar on the forks
Heavy duty swivel hooks makes it easier to secure loads
Can be used with telehandlers, forklift and all-terrain fork lifts
Complies with OSHA/ANSI
Engineered certified
Made in the USA
Standard Specifications
MASPR 812
Spread
Center Position - Single Point Load
Point Loads @65.375" spread position
Point Loads @ 97.88" spread position
Point Loads @ 121.88" spread position
Point Loads @ 145.88" spread position
Lifting Capacity
10000 lbs
5000 x 2 = 10000 lbs
4000 x 28000 lbs
3500 x 2 = 7000 lbs
3000 x 2 = 6000 lbs
weight
580 lbs
MASPR 1015
Spread
Center Position - Single Point Load
Point Loads @65.375" spread position
Point Loads @ 89.00" spread position
Point Loads @ 120.00" spread position
Point Loads @ 150.00" spread position
Point Loads @ 180.00" spread position
Lifting Capacity
10000 lbs
5000 x 2 = 10000 lbs
5000 x 2 = 10000 lbs
4000 x 28000 lbs
3500 x 2 = 7000 lbs
3000 x 2 = 6000 lbs
weight
685 lbs
MASPR 1320
Spread
Center Position - Single Point Load
Point Loads @65.375" spread position
Point Loads @ 110.00" spread position
Point Loads @ 162.00" spread position
Point Loads @ 201.00" spread position
Point Loads @ 240.00" spread position
Lifting Capacity
10000 lbs
5000 x 2 = 10000 lbs
4000 x 28000 lbs
3500 x 2 = 7000 lbs
3000 x 2 = 6000 lbs
2250 x 2 = 4500 lbs
weight
875 lbs
