Fork Extensions
Get that extra reach...

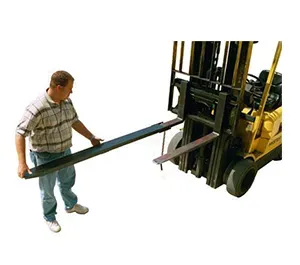

Get more fork under your bulky loads. Quick and Easy - One man can easily install and remove the Fork Extensions in seconds. Can be shipped UPS.
Things You Should Know About Fork Extensions
Overall length of fork extension must not exceed 150% of fork length
Inside width of fork extension must not be more than ½" wider than fork
Forklift capacity is substantially reduced when center of load is moved out beyond standard 2 ft. load center
Do not pick up load with tip of fork extensions
Load must be centered on fork extensions or closer to the backstop
72 Inch extensions
minimum host fork tine length required is 48" - capacity rating is per pair
model
mfe 6255
mfe 636
mfe 637
extension Length
6 Feet
6 Feet
6 Feet
Extension Dimension
2" * 4"
2 1/2" * 5"
2 1/2" * 6"
fit tines up to
2" * 4"
2 1/2" * 5"
2 1/2" * 6"
weight
113 ibs
136 ibs
151 ibs
capacity
3380 ibs
4100 ibs
4350 ibs
90 Inch extensions
minimum host fork tine length required is 60" - capacity rating is per pair
model
mfe 7255
mfe 736
mfe 737
extension Length
7'6"
7'6"
7'6"
Extension Dimension
2 1/2" * 5"
3" * 6"
3" * 7"
fit tines up to
2" * 4"
2 1/2" * 5"
2 1/2" * 6"
weight
139 ibs
168 ibs
187 ibs
capacity
2900 ibs
3520 ibs
3980 ibs
96 Inch extensions
minimum host fork tine length required is 64" - capacity rating is per pair
model
mfe 8255
mfe 836
mfe 837
mfe 848-h
extension Length
8 feet
8 feet
8 feet
8 feet
Extension Dimension
2 1/2" * 5"
3" 6"
3" 7"
4" * 8"
fit tines up to
2" * 4"
2 1/2" * 5"
2 1/2" * 6"
3" * 7"
weight
148 ibs
179 ibs
199 ibs
440 ibs
capacity
2850 ibs
3450 ibs
3600 ibs
10150 ibs
108 Inch extensions
minimum host fork tine length required is 72" - capacity rating is per pair
model
mfe 9255
mfe 936
mfe 937
mfe 948-h
extension Length
9 feet
9 feet
9 feet
9 feet
Extension Dimension
2 1/2" * 5"
3" 6"
3" 7"
4" * 8"
fit tines up to
2" * 4"
2 1/2" * 5"
2 1/2" * 6"
3" * 7"
weight
165 ibs
200 ibs
223 ibs
496 ibs
capacity
2550 ibs
3100 ibs
3450 ibs
10400 ibs
to order
Click upper on the Fork Extensions picture or product name.
Note: Prices do not reflect shipping costs.
