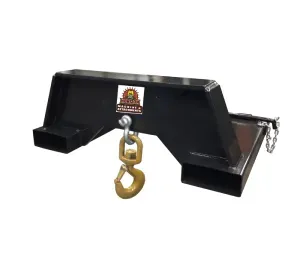

lift hook
Lift up to 30,000 lbs. safely and securely...
Designed to utilize the full capacity of your forklift or telehandler. The hook point is located at the standard 24" Load Center where most forklifts are rated. Can be used with both straight-mast and extendable-reach class forklifts. The Lift Hook meets or exceeds OSHA & ANSI requirements.
Features
Five different models: 6,000, 10,000, 14,000, 22,000 or 30,000 lbs.
6,000, 10,000, 14,000 Lift Hooks have extra wide pockets to accept up to 7.5" wide by 3.5" thick forks.
22,000 or 30,000 Lift Hooks have extra wide pockets to accept up to 9.5" wide by 3.5" thick forks.
Heavy duty . swivel hook with keeper and screw pin anchor shackle are included.
High strength heel pins and tether chain securely holds the Lift Hook to the forks.
Rugged heavy duty construction ensures long term durability.
Meets or exceeds OSHA & ANSI requirements.
Engineering certificate provided.
Made in the USA.
to order
Click upper on the Lift Hook picture or product name.
Note: Prices do not reflect shipping costs.
description
6000 LBS swivel hook
10000 LBS swivel hook
14000 LBS swivel hook
Fork Pocket spacing
14.50" min / 30.00" max
14.50" min / 30.00" max
14.50" min / 30.00" max
weight
137 lbs
142 lbs
147 bs
wide frame swivel hooks
description
10000 LBS frame swivel hook
14000 LBS frame swivel hook
Fork Pocket spacing
20.00" min / 36.00" max
20.00" min / 36.00" max
weight
155 lbs
160 lbs
Telehandler and Forklift, Lift Hook, Swivel Jib, Crane Hook, Lifting Hook, Swivel Crane Hook, Fork Hook, Fork Lift Hook
The lifting capacity of the Lift Hook is ultimately determined by the host machine
