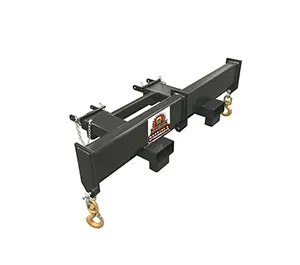

Spreader Bar
It does not have to be a balancing act...
The Spreader Bar is popular with metal building erectors. They use it to handle long metal beams as well as sheet metal roofing and siding. Long material has a tendency to bend and can be difficult to balance. The Spreader Bar can handled this material easily and safely. Concrete contractors can use the Spreader Bar to effectively handle rebar cages. All around you will find many uses for this handy attachment.
Features
Two models to choose from 72" and 96"
Constructed of heavy tubular steel components
Fork slot pockets accept 7" wide x 2 3/4" thick forks
Safety chains and pin secures the Spreader Bar on the forks
Heavy duty swivel hooks makes it easier to secure loads
Can add an extra center 5 ton swivel hook with the options below
Can be used with telehandlers, forklift and all-terrain fork lifts
Complies with OSHA/ANSI
Engineered certified
Made in the USA
The lifting capacity of the Spreader Bar is ultimately determined by the lift capacity of the host machine.
Standard Specifications
MSPR 72
Description
72 inch Spreader Bar
Capacity
10,000 lbs @ 72"
10,000 lbs center position
weight
345 lbs
MSPR 96
Description
96 inch Spreader Bar
Capacity
10,000 lbs @ 96"
10,000 lbs center position
weight
425 lbs
Comes standard with two 5 ton swivel hook
order code
m005
Description
Optional Third Hook and Shackle - 5 ton Swivel Hook
to order
Click upper on the Adjustable Spreader Bar picture or product name.
Note: Prices do not reflect shipping costs.
