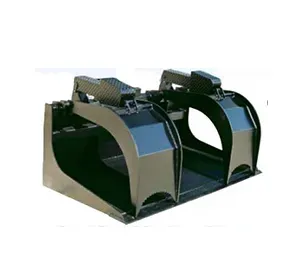

Telehandler Grapple Bucket
Cleaning up...
The Telehandler Solid Bottom Grapple Bucket will address all of your clean-up needs. this Grapple will increase productivity for storm clean-up, demolition, construction, landscaping and land clearing applications. The three heavy duty models can be fabricated to fit most telehandler quick-attaches.
Features
Move bulky hard-to-handle materials easily and securely
Ideal for loading and piling logs and brush
Great for cleaning up demolition and storm debris
Rugged heavy duty construction for dependability and long life
Hydraulic cylinders operate independently to adjust for uneven loads
Hydraulic cylinders, hoses and fittings are protected with covers
Protected grease Zirks at all pivot points
Can be fabricated to fit most telehandler's quick-attaches
Bottom of the Telehandler Grapple Bucket is reinforced with 1/2" thick steal ribs
Three different models are available
Optional side shields to hold in loose debris
Optional bolt-on cutting edge
Hydraulic cylinders are protected by debris shields
Made in the USA

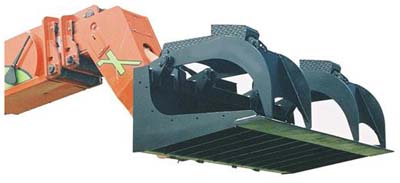

Reinforcement Ribs on the bottom of the Telehandler Grapple Bucket.
Concealed Hoses and Cylinders
Zirks are protected by metal rings.
Optional Side Plates
Standard Specifications
Demolition Grade 72" Grapple Bucket
Width
72"
Grapple Opening
45"
Grapple Capacity
0.9 yd3
Bucket Capacity:(with side plates)
0.6 yd3
Depth
39"
Bucket Back Height
19"
Back Structure
(2) 4" * 4" * 1/4" tubes
Bucket Back
3/16" Plate
Bucket Bottom
1/4" Plate
Bucket Sides
1/2" plate
Bottom Wear Protection
1/2" Ribs
Grapple Thickness
9/16"
Cutting Edge
1" * 8"
HD Welded Hyd Cylinders
2" * 10" 11/4 rod
HD Hoses & Couplers
included
Empty Weight
+1135 lbs.
Mega Grade 72" Grapple Bucket
Width
72"
Grapple Opening
58.8"
Grapple Capacity
1.33 yd3
Bucket Capacity:(with side plates)
1.0 yd3
Depth
45.5"
Bucket Back Height
31"
Back Structure
(3) 4" 4" * 1/4" tubes
Bucket Back
1/4" Plate
Bucket Bottom
1/4" Plate
Bucket Sides
1/2" plate
Bottom Wear Protection
1/2" Ribs
Grapple Thickness
9/16"
Cutting Edge
1" * 8"
HD Welded Hyd Cylinders
2" * 10" 11/4 rod
HD Hoses & Couplers
included
Empty Weight
+1500 lbs.
Mega Grade 95" Grapple Bucket
Width
95"
Grapple Opening
58.8"
Grapple Capacity
1.75 yd3
Bucket Capacity:(with side plates)
1.4 yd3
Depth
45.5"
Bucket Back Height
31"
Back Structure
(3) 4" 4" * 1/4" tubes
Bucket Back
1/4" Plate
Bucket Bottom
1/4" Plate
Bucket Sides
1/2" plate
Bottom Wear Protection
1/2" Ribs
Grapple Thickness
9/16"
Cutting Edge
1" * 8"
HD Welded Hyd Cylinders
2" * 10" 11/4 rod
HD Hoses & Couplers
included
Empty Weight
+1790 lbs.
to order
Click upper on the Telehandler Grapple Bucket picture or product name.
Note: Prices do not reflect shipping costs.
