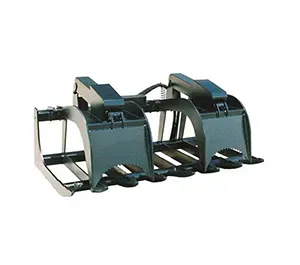

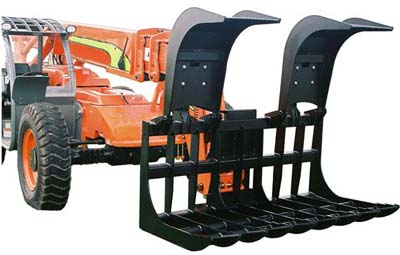

Telehandler Root Grapple
Get a grip...
The Telehandler Root Grapple will address all of your clean-up needs. It will increase productivity for storm clean-up, demolition, construction, landscaping and land clearing applications. The three heavy duty models can be fabricated to fit most telehandler quick-attaches.
Features
Move bulky hard-to-handle materials easily and securely.
Ideal for loading and piling logs and brush.
Great for cleaning up demolition and storm debris.
Rugged heavy duty construction for dependability and long life.
Hydraulic cylinders operate independently to adjust for uneven loads.
Hydraulic cylinders, hoses and fittings are protected with covers.
Protected grease Zirks at all pivot points.
Can be fabricated to fit most telehandler's quick-attaches.
Root Grapple lets the dirt sift out when loading large rocks and trash.
Three different models are available.
The bottom tines are curved upward - prevents catching utility lines or cables during storm clean-up.
Serrated plates between grapple tines provide grip for pulling logs out of pile.
Optional intermediate bottom tines - reduces space between tines.
Made in the USA.
Grapples open wide for a full load.
Concealed Hoses and Cylinders
Zirks are protected by metal rings.
Quick-Attach available for most Telehandlers.
Standard Specifications
Demolition Grade 72" Grapple Bucket
Width
72"
Grapple Opening
45"
Grapple Capacity
0.75 yd3
Depth
42"
Back Height
19"
back Structure
(2) 4" * 4" * 1/4" tubes
bottom Structure
(1) 3" x 1/4" Round
Bottom Tine Height
Tube
Bottom Tine Thickness
5"
Grapple Tine Thickness
1/2" Ribs
Distance between Tines
9/16"
HD Welded Hyd
Approx. 8½"
Cylinders
2" x 10" 1¼" Rod
HD Hoses & Couplers
included
Empty Weight
+1050 lbs.
Mega Grade 72" Grapple Bucket
Width
72"
Grapple Opening
57"
Grapple Capacity
1.5 yd3
Depth
48"
Back Height
36"
back Structure
(3) 4" * 4" * 1/4" tubes
Bottom Structure
(2) 3" x 1/4" Round
Bottom Tine Height
Tube
Bottom Tine Thickness
5"
Grapple Tine Thickness
1/2" Ribs
Distance between Tines
9/16"
HD Welded Hyd
Approx. 8½"
Cylinders
2" * 10" 11/4 rod
HD Hoses & Couplers
included
Empty Weight
+1350 lbs.
Mega Grade 95" Grapple Bucket
Width
95"
Grapple Opening
57"
Grapple Capacity
2 yd3
Depth
48"
Back Height
36"
back Structure
(3) 4" * 4" * 1/4" tubes
bottom Structure
(2) 3" x 1/4" Round
Bottom Tine Height
Tube
Bottom Tine Thickness
5"
Grapple Tine Thickness
1/2" Ribs
Distance between Tines
9/16"
HD Welded Hyd
Approx. 8½"
Cylinders
2" * 10" 11/4 rod
HD Hoses & Couplers
included
Empty Weight
+1650 lbs.
to order
Click upper on the Telehandler Root Grapple picture or product name.
Note: Prices do not reflect shipping costs.
